| There is on the right a FOM file,
which is output by the program DIMS for plotting curves of
figures

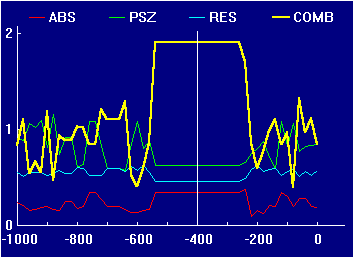

of merit vs. defocus value. Opening the file on the right with VEC
in graphic mode results
in the following plot.
The x-coordinate denotes the defocus value in Angstroms.
Its starting point, ending point and step width are declared by parameters
on the line of the keyword FOCU (see the right file). The y-coordinate
denotes the value of figures of merit. Values of the four figures of merit,
Abs, Psz, Res and Comb, at the same defocus are given from left to right
on a FOM4 keyword line. The first FOM4 line corresponds to the starting
defocus (-1000Å in this example).
|
| Phthalocynine.fom |
DIMS FOM
FOCU
-1000 0
20
FOM4 0.2870
1.0030 0.6230 0.4857
FOM4 0.2910
0.9430 0.6010 0.7167
FOM4 0.1790
1.1800 0.6080 0.3098
FOM4 0.1990
1.0620 0.5990 0.5356
FOM4 0.1830
1.1750 0.6230 0.2159
FOM4 0.1810
1.1830 0.6110 0.2862
FOM4 0.1550
1.0000 0.6260 0.4162
FOM4 0.1620
0.7890 0.6010 0.8690
FOM4 0.3140
0.7390 0.5770 1.1599
FOM4 0.3140
0.7390 0.5770 1.1599
FOM4 0.1600
0.8140 0.6300 0.6375
FOM4 0.1910
0.9590 0.6000 0.6621
FOM4 0.4280
1.0620 0.5750 0.7911
FOM4 0.4280
1.0620 0.5750 0.7911
FOM4 0.2730
1.0600 0.6350 0.3227
FOM4 0.1770
0.9930 0.6320 0.3934
FOM4 0.1770
0.9930 0.6320 0.3934
FOM4 0.1770
0.9930 0.6320 0.3934
FOM4 0.1480
1.0780 0.6300 0.2827
FOM4 0.1330
1.0040 0.6480 0.2522
FOM4 0.1150
0.9380 0.6240 0.4959
FOM4 0.2020
0.8940 0.6330 0.5279
FOM4 0.1600
0.8510 0.6360 0.5476
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.2900
0.4790 0.5110 1.9446
FOM4 0.3790
0.7110 0.5290 1.5501
FOM4 0.0960
0.6000 0.6370 0.8479
FOM4 0.2020
0.8940 0.6330 0.5279
FOM4 0.2180
1.1730 0.6230 0.2326
FOM4 0.1440
0.9500 0.6360 0.4099
FOM4 0.1770
0.9930 0.6320 0.3934
FOM4 0.4280
1.0620 0.5750 0.7911
FOM4 0.1710
0.7130 0.6400 0.7077
FOM4 0.2190
0.7390 0.6170 0.8492
FOM4 0.2200
0.6760 0.5830 1.1648
FOM4 0.2970
0.8910 0.6160 0.6858
FOM4 0.3880
0.9730 0.5420 1.1178
FOM4 0.1810
0.9530 0.6000 0.6661
*EOS
END |
|
